Submersible Borehole Pumps
4DP5-100-110-1100
4DP5-100-110-1100 from the PumpCo DC Solar Pumps range. 1100 W 110 V DC solar motor. Up to 100 m head and 4.8 m³/h flow.
Part of the DC Solar Pumps range
- Power
- 1.1 kW
- Flow range
- 0–4.8 m³/h
- Head range
- 23–100 m
- Voltage
- 110 V
- Solar motor
- 1100 W, 110 V DC
- Curve speeds
- See curves

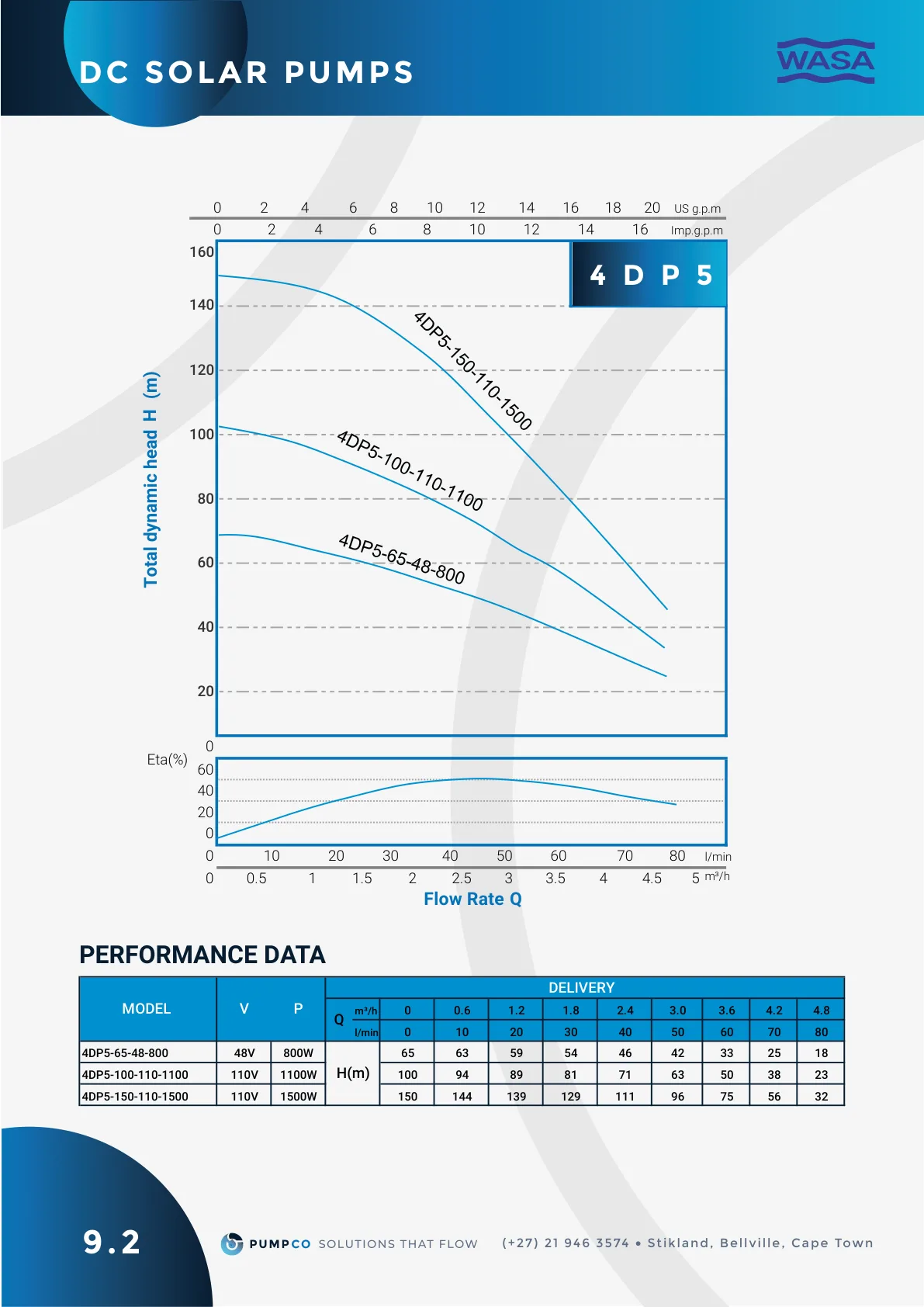

Performance
4DP5-100-110-1100 · 50 Hz
| Q (m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
|---|---|---|---|---|---|---|---|---|---|
| H (m) | 100 | 94 | 89 | 81 | 71 | 63 | 50 | 38 | 23 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 1.1 kW
- Voltage
- 110 V
- Phase
- DC

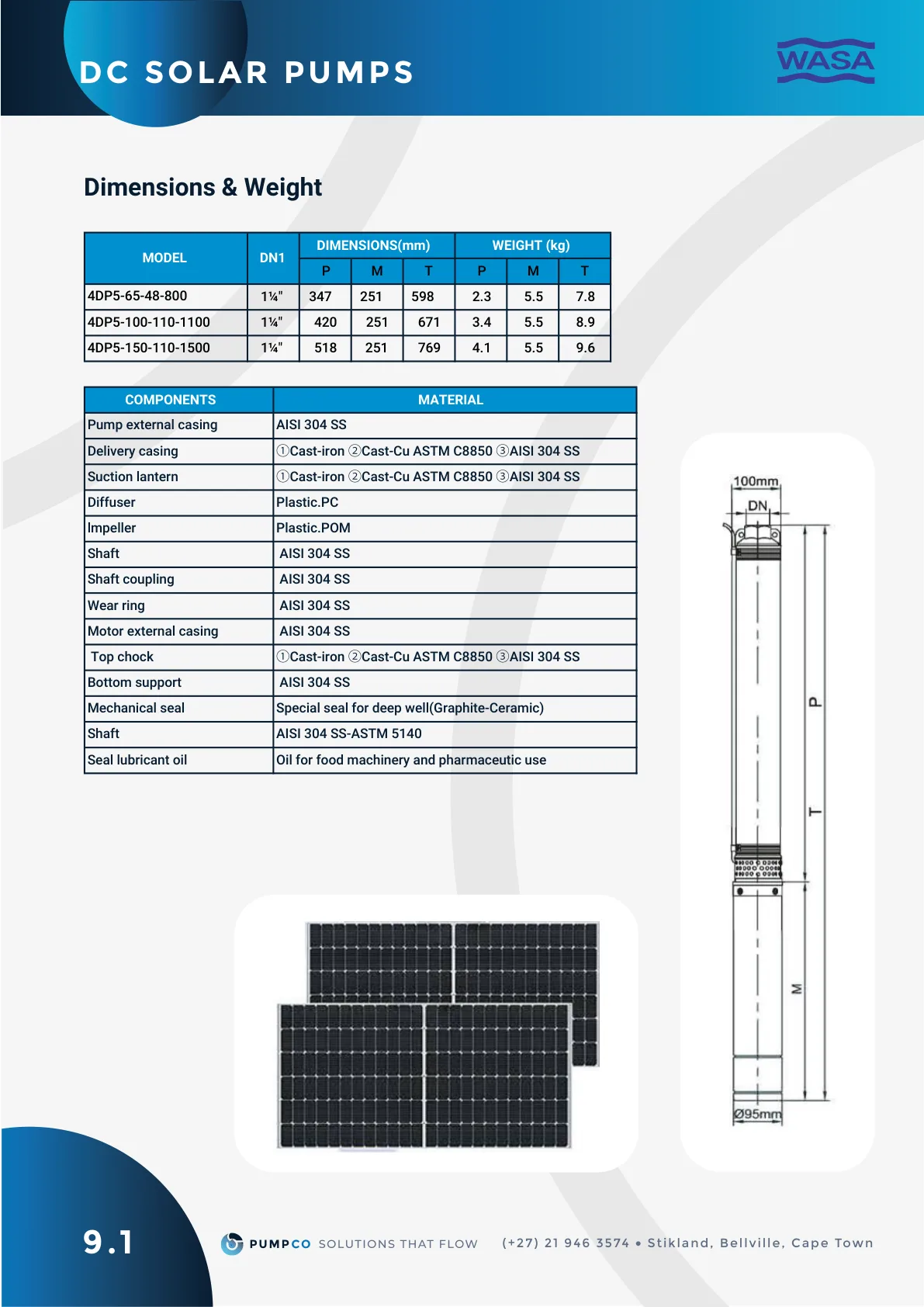

Dimensions
| DN1 | P (mm) | M (mm) | T (mm) | Weight P (kg) | Weight M (kg) | Weight T (kg) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1¼" | 420 | 251 | 671 | 3.4 | 5.5 | 8.9 | 8.9 |
Duty limits
- Maximum fluid temperature
- up to 35°C
- Maximum sand content
- 0.25%
- Minimum borehole diameter
- 4′′
Applications
- For water supply from wells or reservoirs
- For domestic use, for civil and industrial applications For garden use and irrigation.
- Permanent magnetic brushless DC motor NEMA Dimension standards
- Curve tolerance according to ISO9906 Over-load protection, under-load protection. Lock-rotor protection, thermal protection.
