Close Coupled End-Suction Pumps
MNW 32-200
MNW 32-200 from the PumpCo MNW 32 range. 3 kW motor at 2900 rpm. Up to 44.2 m head and 27 m³/h flow.
Part of the MNW 32 range
- Power
- 3 kW (4 HP)
- Speed
- 2900 rpm
- Flow range
- 0–27 m³/h
- Head range
- 19.8–54.5 m
- Motor power
- 3 kW (4 HP)
- Discharge x suction (DN)
- 50 x 32
- Motor options
- MNW 32-200/30 (3 kW); MNW 32-200/40 (4 kW)
- Curve speeds
- 2900 rpm
Performance
MNW 32-200/30 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 9 | 15 | 18 | 24 | 27 |
|---|---|---|---|---|---|---|---|
| H (m) | 44.2 | 42 | 39.8 | 35.2 | 32.2 | 24.6 | 19.8 |
MNW 32-200/40 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 9 | 15 | 18 | 24 | 27 |
|---|---|---|---|---|---|---|---|
| H (m) | 54.5 | 52 | 50 | 45.5 | 42.3 | 35 | 30.3 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 3 kW (4 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 88 | 490 | 342 | 161 | 181 | 265 | 190 | 240 | 52 |

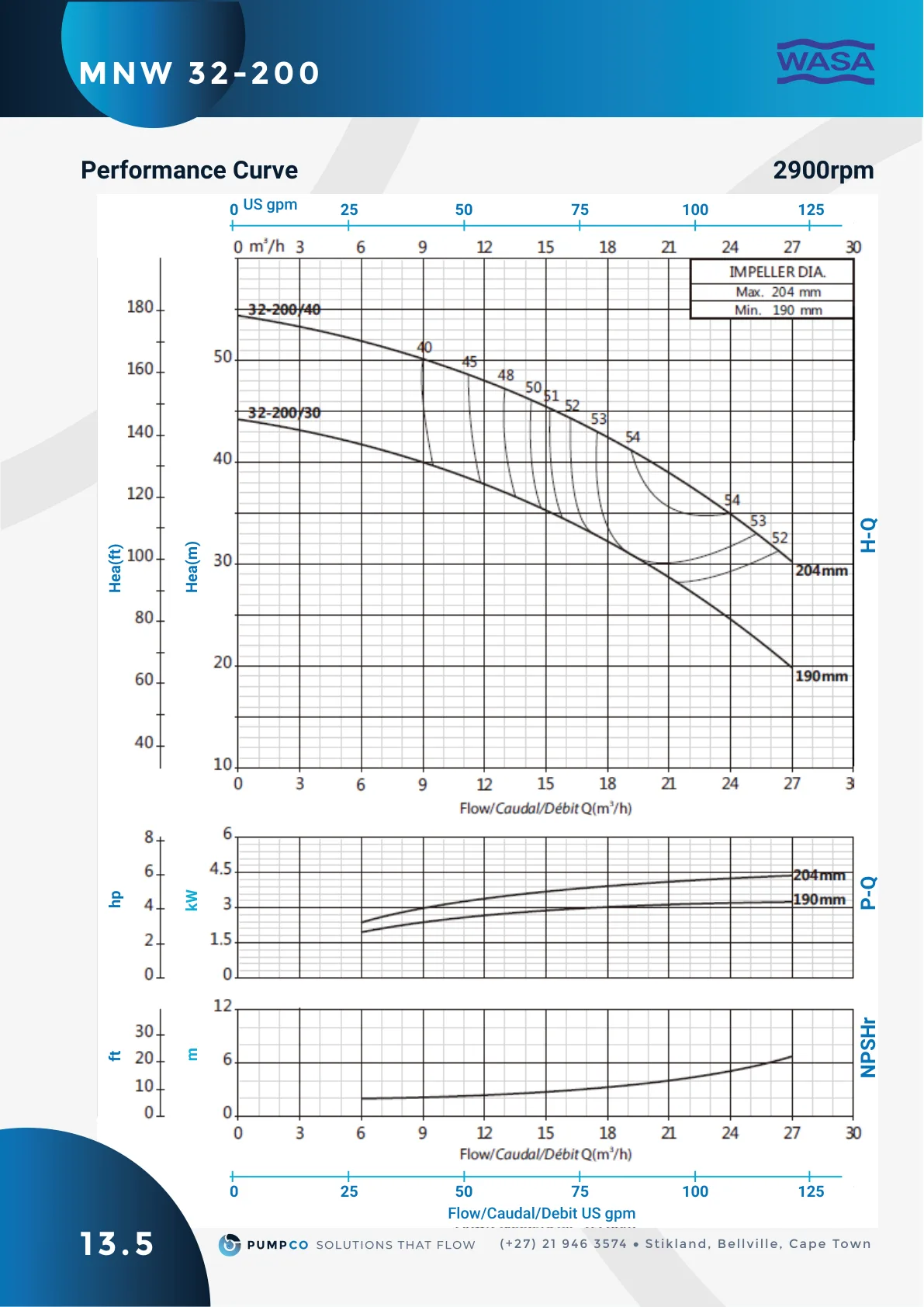

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
