Close Coupled End-Suction Pumps
MNW 32-250
MNW 32-250 from the PumpCo MNW 32 range. 5.5 kW motor at 2900 rpm. Up to 60 m head and 24 m³/h flow.
Part of the MNW 32 range
- Power
- 5.5 kW (7.5 HP)
- Speed
- 2900 rpm
- Flow range
- 0–24 m³/h
- Head range
- 34.5–60 m
- Motor power
- 5.5 kW (7.5 HP)
- Discharge x suction (DN)
- 50 x 32
- Curve speeds
- 2900 rpm

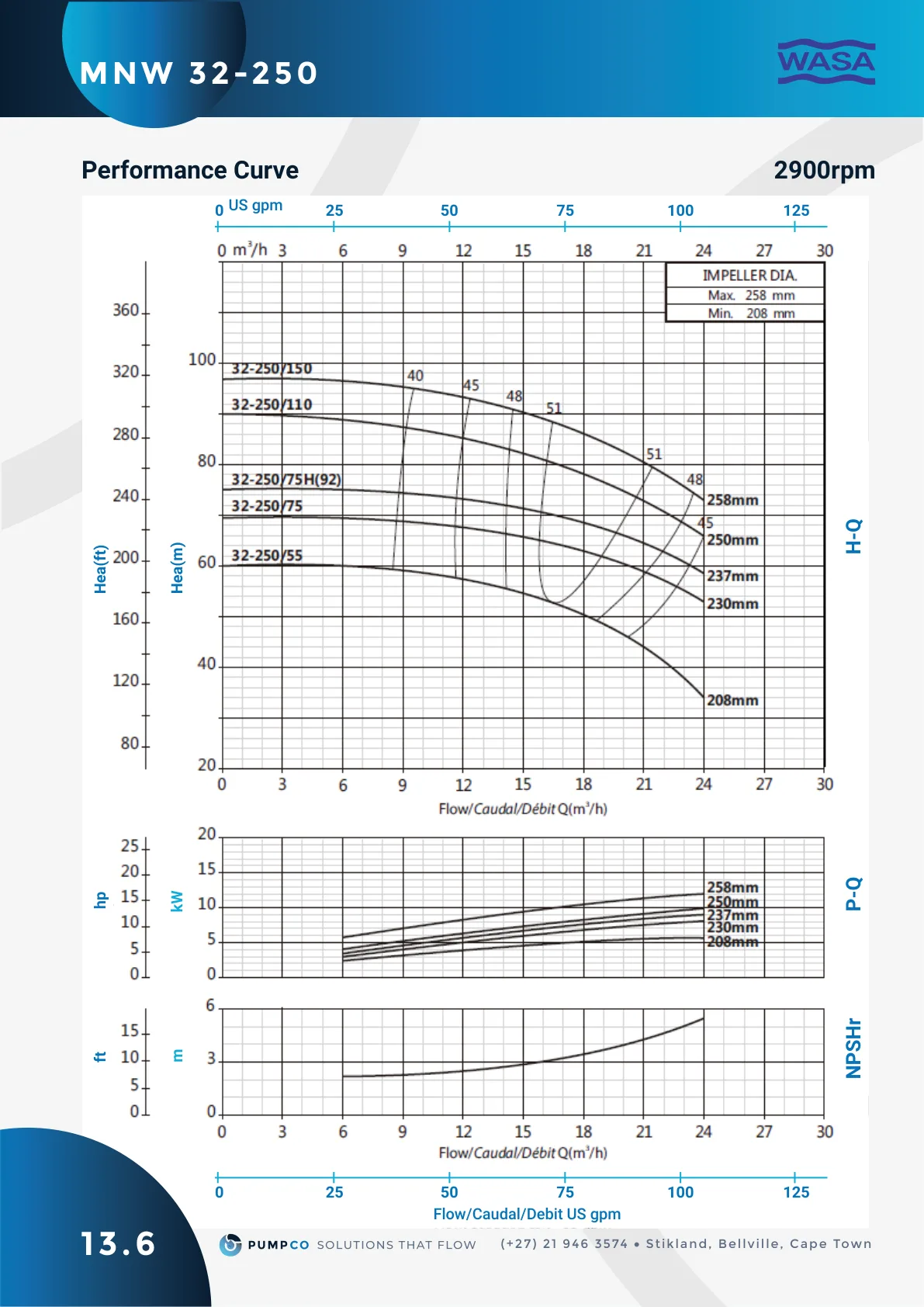

Performance
MNW 32-250 at 2900 rpm · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 9 | 15 | 18 | 24 |
|---|---|---|---|---|---|---|
| H (m) | 60 | 59.5 | 59 | 55 | 50.2 | 34.5 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 5.5 kW (7.5 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | w1 (mm) | w2 (mm) | s (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 590 | 405 | 186 | 219 | 333 | 250 | 328 | 49 | 49 | 16 | 80 |
Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
