Close Coupled End-Suction Pumps
MNW 40-125
MNW 40-125 from the PumpCo MNW 40 range. 2.2 kW motor at 2900 rpm. Up to 24.5 m head and 48 m³/h flow.
Part of the MNW 40 range
- Power
- 2.2 kW (3 HP)
- Speed
- 2900 rpm
- Flow range
- 0–48 m³/h
- Head range
- 8.3–24.5 m
- Motor power
- 2.2 kW (3 HP)
- Discharge x suction (DN)
- 65 x 40
- Curve speeds
- 2900 rpm

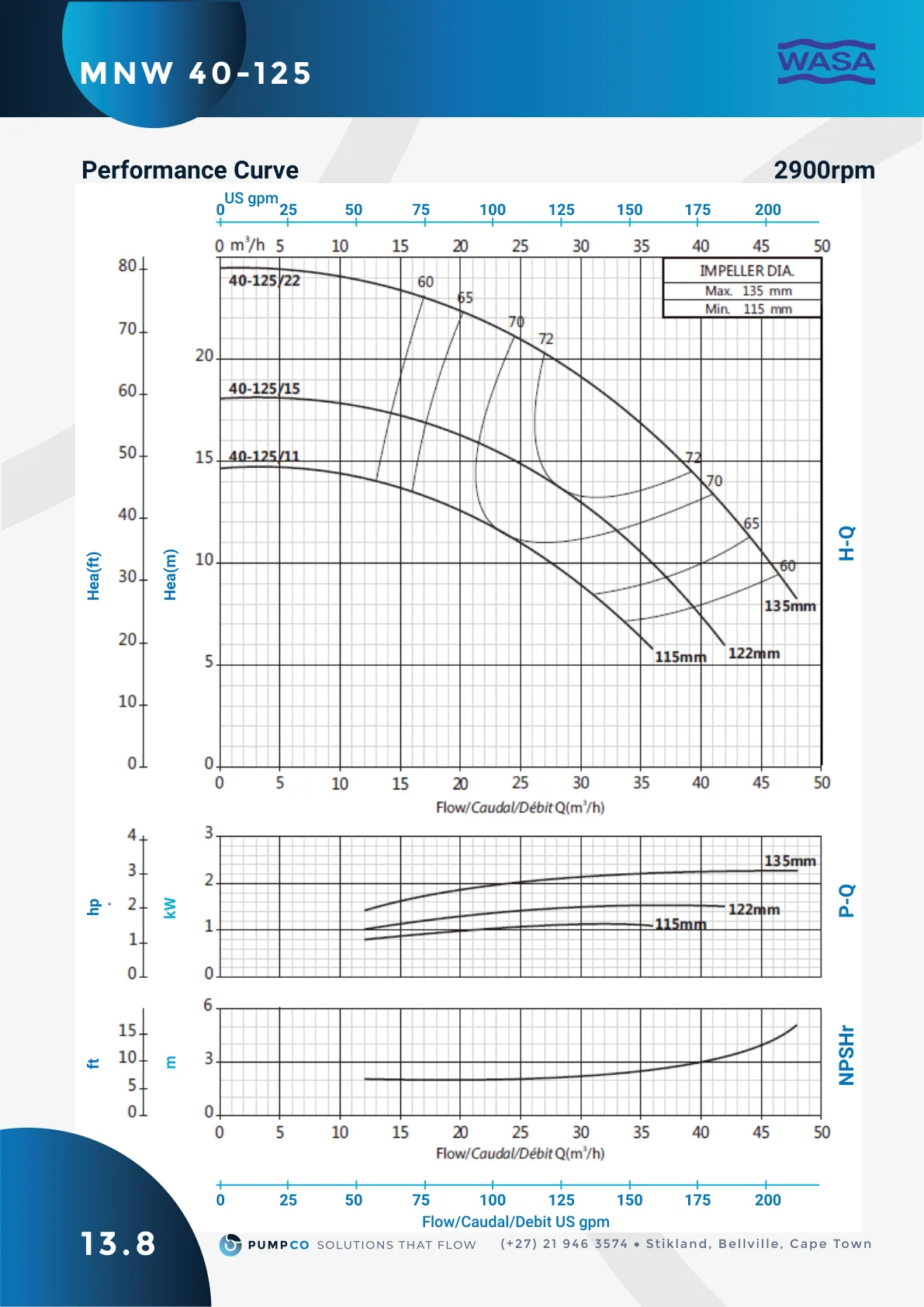

Performance
MNW 40-125 at 2900 rpm · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 18 | 24 | 27 | 36 | 42 | 48 |
|---|---|---|---|---|---|---|---|
| H (m) | 24.5 | 23.2 | 21.5 | 20.2 | 16 | 13 | 8.3 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 2.2 kW (3 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| DN1 (mm) | DN2 (mm) | a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | w1 (mm) | w2 (mm) | s (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65 | 40 | 82 | 440 | 260 | 116 | 114 | 220 | 160 | 212 | 37 | 37 | 15 | 34 |
Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
