Close Coupled End-Suction Pumps
MNW 50-200
MNW 50-200 from the PumpCo MNW 50 range. 11 kW motor at 2900 rpm. Up to 57.5 m head and 90 m³/h flow.
Part of the MNW 50 range
- Power
- 11 kW (15 HP)
- Speed
- 2900 rpm
- Flow range
- 0–90 m³/h
- Head range
- 29–57.5 m
- Motor power
- 11 kW (15 HP)
- Discharge x suction (DN)
- 65 x 50
- Curve speeds
- 2900 rpm
Performance
MNW 50-200 at 2900 rpm · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 36 | 42 | 48 | 54 | 72 | 84 | 90 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 57.5 | 53.5 | 52 | 50 | 47.5 | 40 | 34 | 29 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 11 kW (15 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 102 | 722 | 392 | 186 | 206 | 307 | 232 | 310 | 106 |

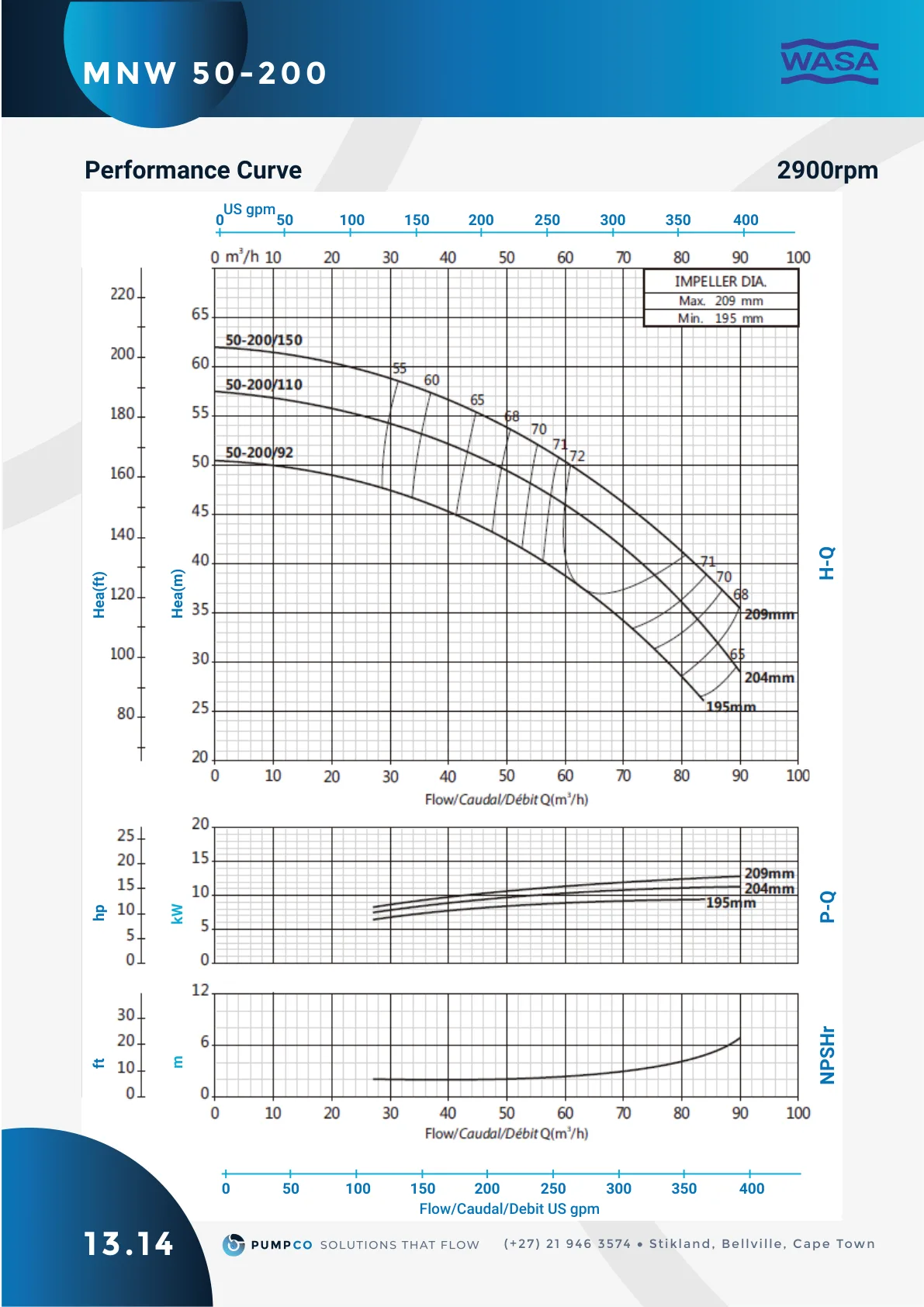

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
