Close Coupled End-Suction Pumps
MNW 65-125
MNW 65-125 from the PumpCo MNW 65 range. 5.5 kW motor at 2900 rpm. Up to 23 m head and 84 m³/h flow.
Part of the MNW 65 range
- Power
- 5.5 kW (7.5 HP)
- Speed
- 2900 rpm
- Flow range
- 0–120 m³/h
- Head range
- 17.5–27 m
- Motor power
- 5.5 kW (7.5 HP)
- Discharge x suction (DN)
- 65 x 50
- Motor options
- MNW 65-125/55 (5.5 kW); MNW 65-125/75 (7.5 kW)
- Curve speeds
- 2900 rpm
Performance
MNW 65-125/55 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 48 | 54 | 72 | 84 |
|---|---|---|---|---|---|
| H (m) | 23 | 21.3 | 20.9 | 19 | 17.5 |
MNW 65-125/75 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 48 | 54 | 72 | 84 | 90 | 108 | 120 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 27 | 26 | 25.6 | 24.5 | 23 | 22.5 | 20 | 18 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 5.5 kW (7.5 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| DN1 (mm) | DN2 (mm) | a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 65 | 104 | 580 | 345 | 162 | 193 | 275 | 212 | 280 | 68–74 |

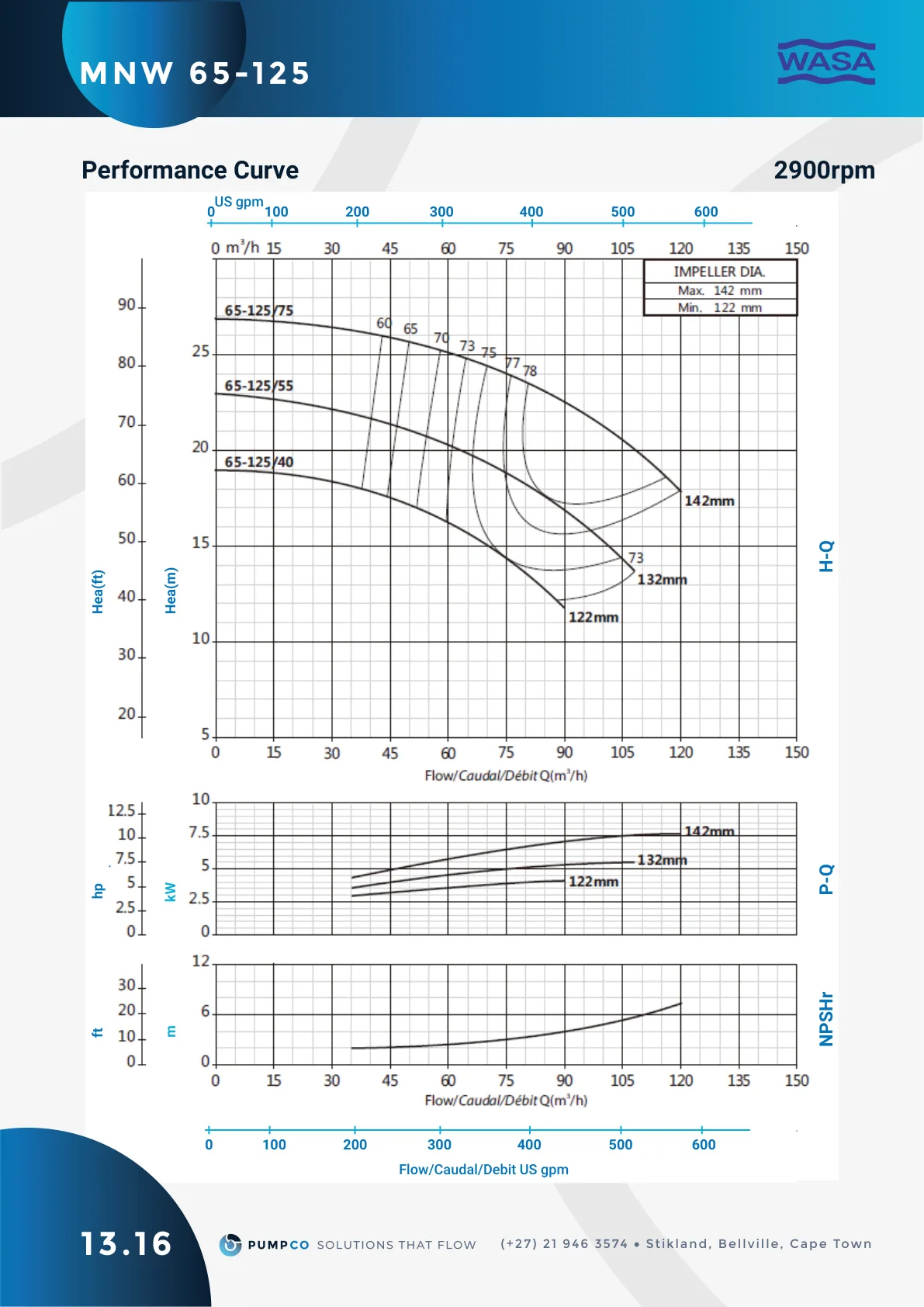

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
