Domestic Pumps
PKM60
PKM60 from the PumpCo PKM Series range. 0.37 kW motor at 2850 rpm. Up to 41 m head and 2.1 m³/h flow.
Part of the PKM Series range
- Power
- 0.37 kW (0.5 HP)
- Speed
- 2850 rpm
- Flow range
- 0–2.1 m³/h
- Head range
- 6–41 m
- Motor power
- 0.37 kW (0.5 HP)
- Curve speeds
- See curves
- Maximum sand content
- 0.25%
- Maximum suction lift
- 8m
Performance
PKM60 at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 41 | 36 | 31 | 26 | 21 | 16 | 11 | 6 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 0.37 kW (0.5 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Dimensions
| DN1 | DN2 | W (mm) | H (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1'' | 1'' 1 | 17 | 150 | 264 | 6.3 |

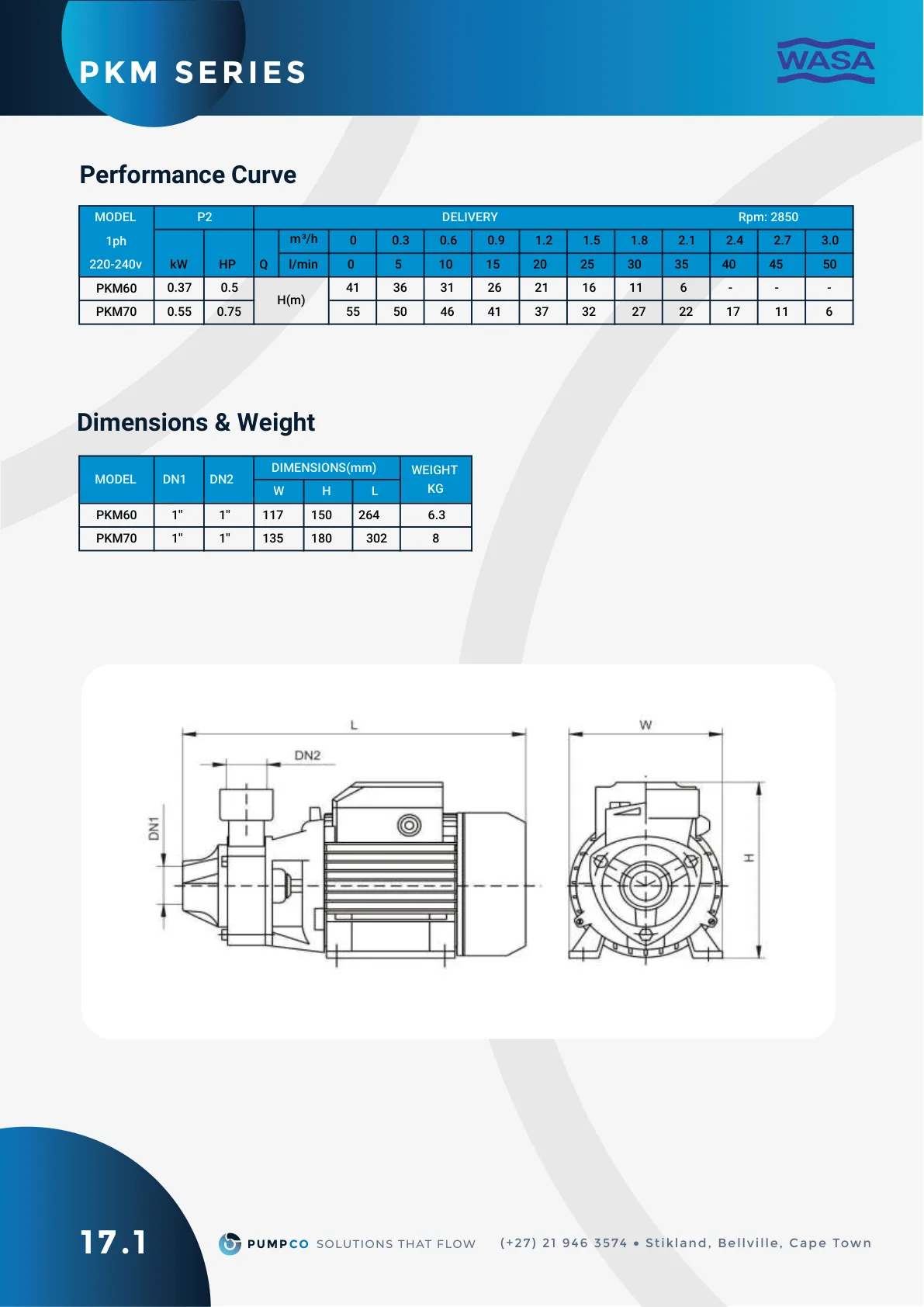

Curves & catalogue
Applications
- Rewindable motor
- Single-phase:220-240V/50Hz
- Curve tolerance according to ISO 9906
- Impeller material: Brass
