Vertical Pumps
PVS 4-8
PVS 4-8 from the PumpCo PVS 4 range. 1.5 kW motor at 2900 rpm. Up to 74 m head and 7 m³/h flow.
Part of the PVS 4 range
- Power
- 1.5 kW (2 HP)
- Speed
- 2900 rpm
- Flow range
- 1.5–7 m³/h
- Head range
- 38–74 m
- Motor power
- 1.5 kW (2 HP)
- Discharge x suction (DN)
- 32 x 32
- Curve speeds
- 2850 rpm

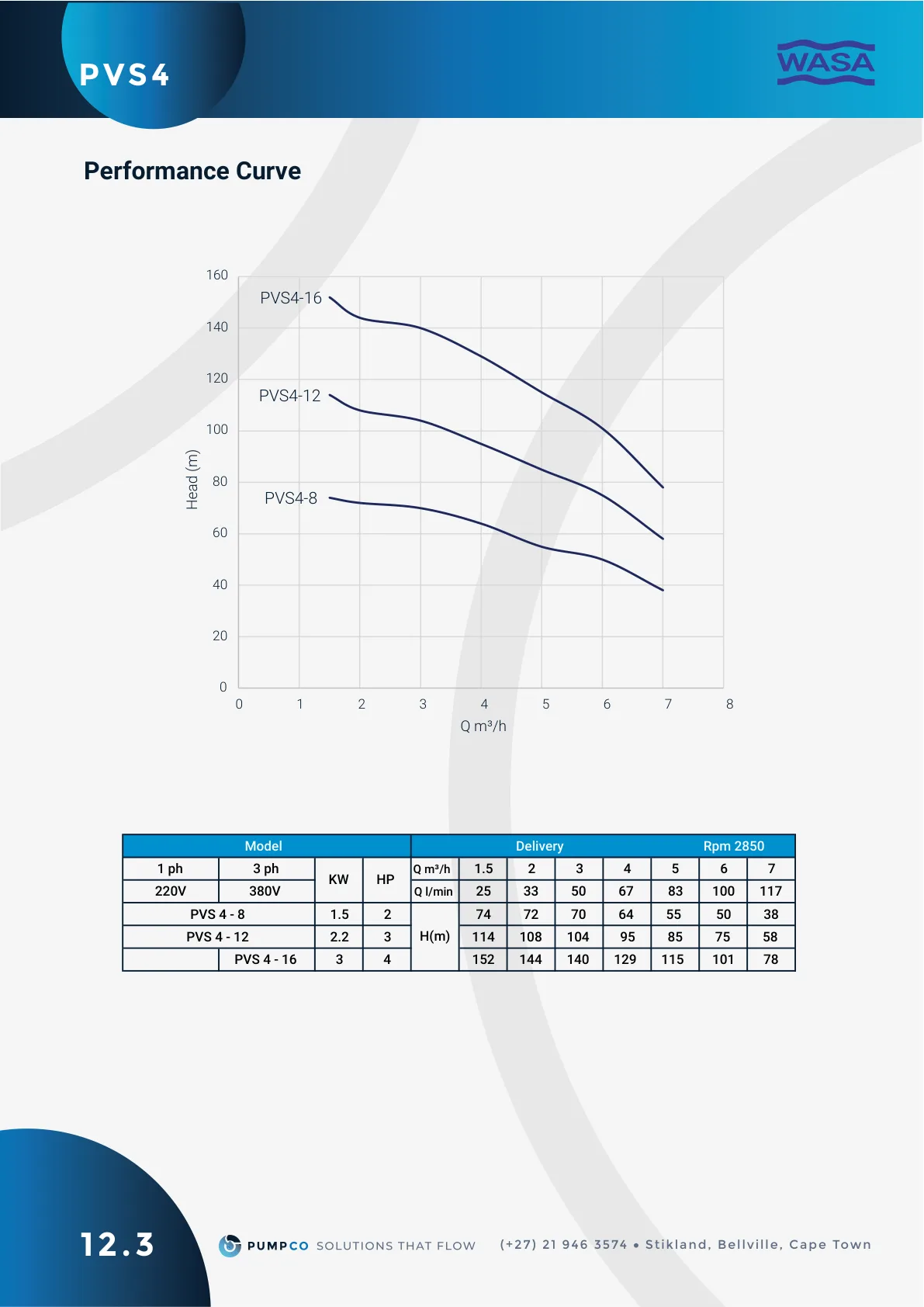

Performance
PVS 4-8 at 2900 rpm · 2900 rpm · 50 Hz
| Q (m³/h) | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| H (m) | 74 | 72 | 70 | 64 | 55 | 50 | 38 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 1.5 kW (2 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm

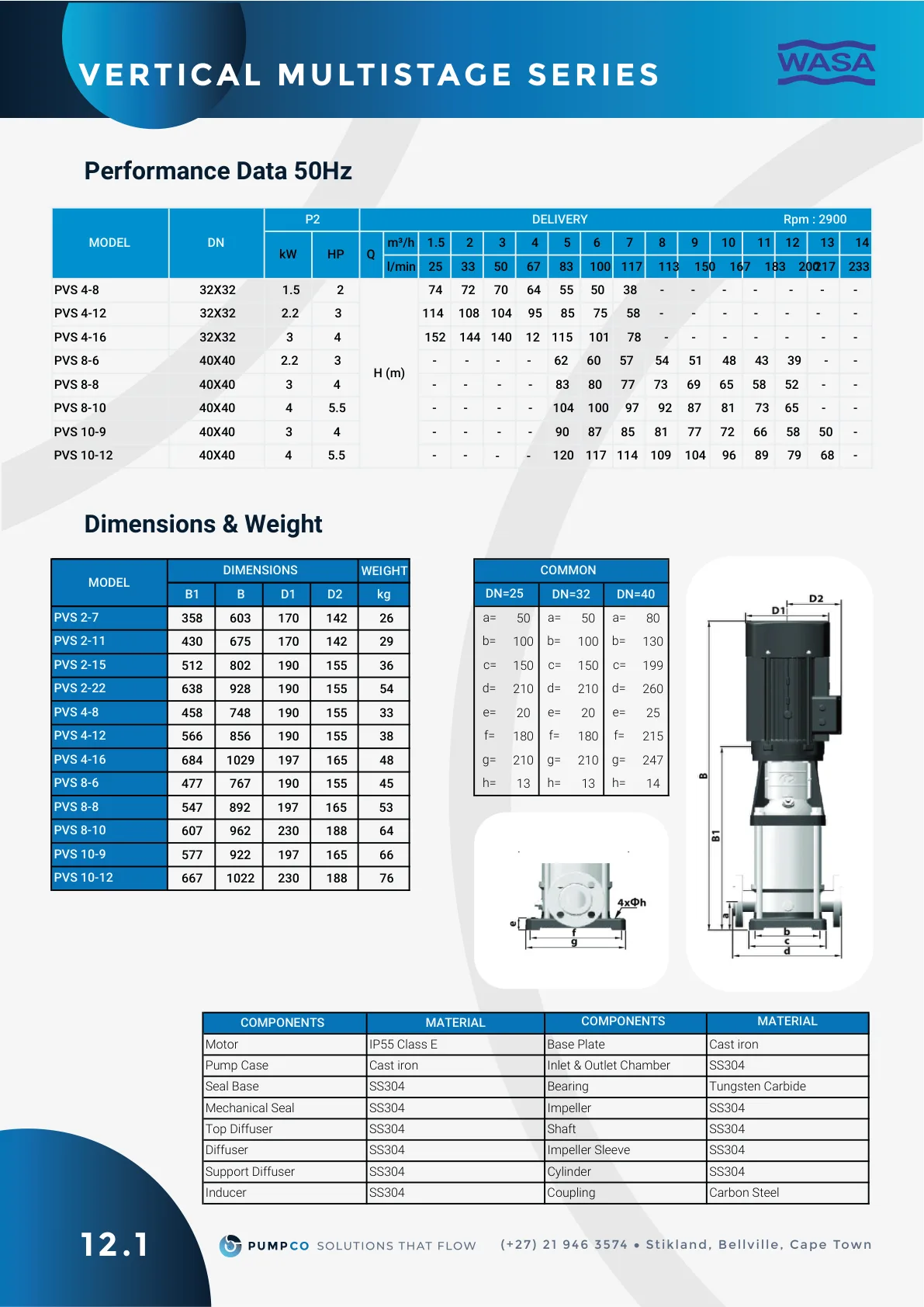

Dimensions
| B1 (mm) | B (mm) | D1 (mm) | D2 (mm) | Weight (kg) |
|---|---|---|---|---|
| 458 | 748 | 190 | 155 | 33 |
Materials
| Part | Material |
|---|---|
| Motor | IP55 Class E |
| Base Plate | Cast iron |
| Pump Case | Cast iron |
| Inlet & Outlet Chamber | SS304 |
| Seal Base | SS304 |
| Bearing | Tungsten Carbide |
| Mechanical Seal | SS304 |
| Impeller | SS304 |
| Top Diffuser | SS304 |
| Shaft | SS304 |
| Diffuser | SS304 |
| Impeller Sleeve | SS304 |
| Support Diffuser | SS304 |
| Cylinder | SS304 |
| Inducer | SS304 |
| Coupling | Carbon Steel |
Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Suction and discharge ports are on the same level Pump impeller and shaft - Stainless steel
- Pump head and base are in cast iron
