4" Borehole Pumps
4SD16
4SD16 from the PumpCo 4SD Series range.
Part of the 4SD Series range
- Speed
- 2850 rpm
- Frequency
- 50 Hz
- Curve speeds
- See curves
Duty limits
- Speed
- 2850rpm
- Insulation class
- F
- Protection grade
- IP 68
- Maximum sand content
- 0.25%
- Minimum well diameter
- 4"

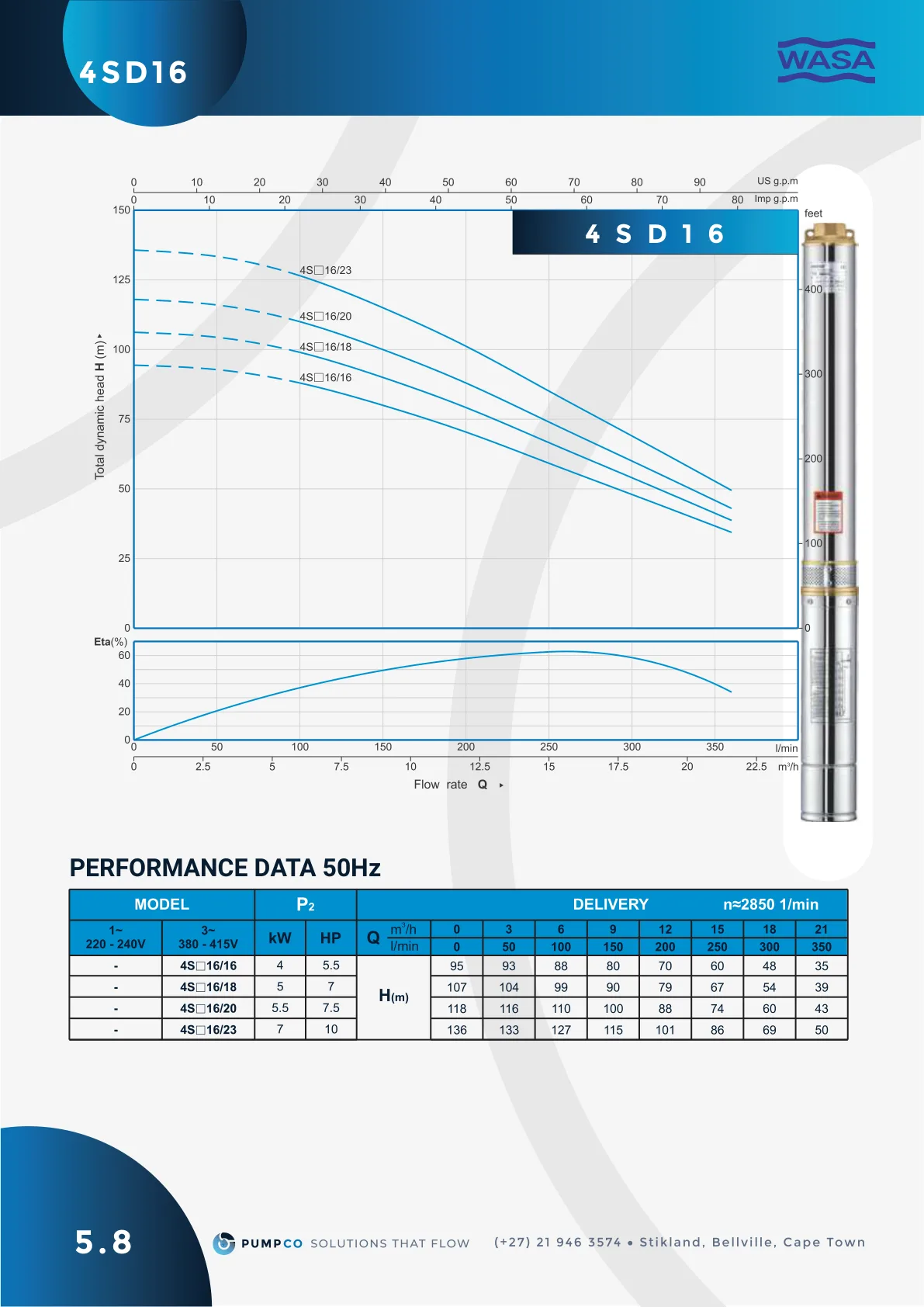

Curves & catalogue
Applications
- Single-phase: 220v-240V/50Hz
- Three-phase: 380-415V/50Hz
- Pumps are designed by casing stressed NEMA dimension standards
- Curve tolerance according to ISO 9906
- Single phase motor unit
- Equip with start control box or digital auto-control box
